Mattress guards are the bar at the foot of the bed that keep your mattress from sliding off the foot of the bed when you raise the head of the bed. While the older mattress guards were flat black metal, the new ones are round chrome and are stronger that the old flat ones. They are available in several different styles:
1. Retainer bars that bolts to the top of the base platform.
2. Retainer bars that pushes into plastic liners inserted into holes in the top of the base platform.
3. Retainer bars that snaps into mounting brackets mounted to the top of the base. These are a universal bar for beds with a wood deck.
4. Retainer bars that bolts under the bottom of the base platform (most older beds).
5. Shark Bites - These were used on Select Comfort air mattresses instead of a retainer bar at the foot of the bed.
Listed below are the retainer bars I have access to. I can still order the first four bars but the others are just one or 2 of a kind. I have included measurements so you can check if they fit. The bars don't weigh much but are bulky, so the wider they are and the taller they are, the more it cost to ship them.
|
RETAINER BARS FOR THE FOOT OF YOUR BED
|
 |

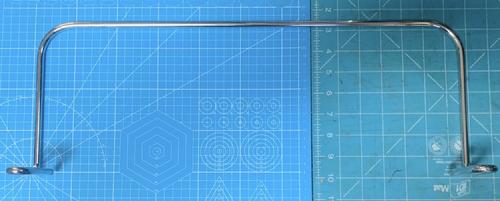

| 29x6 BOLT ON RETAINER BAR |
|
| 29" Wide X 6" Tall Lifestyle
This style of retainer bar is designed to be mounted on the top surface of the bed. It is approx. 29" wide and 6" tall. It has the open loop mounting point. The bolts and special washers to mount it must be purchased separately. They come standard in a flat grey finish now, CHROME IS NO LONGER AVAILABLE. It mounts to pre-installed t-nuts in the base. It can be retrofitted to a base with a wood deck but you will have to drill holes and install either t-nuts or use a nut and bolt to mount it.
Retainer Bar $100
Mounting Hardware $10
|
19" Wide X 6" Tall Lifestyle
This style of retainer bar is designed to be mounted on the top surface of the bed. It is approx. 19" wide and 6" tall. It has the open loop mounting point. The bolts and special washers to mount it must be purchased separately. They come standard in a flat black or grey finish now, CHROME IS NO LONGER AVAILABLE. It mounts to pre-installed t-nuts in the base. It can be retrofitted to a base with a wood deck but you will have to drill holes and install either t-nuts or use a nut and bolt to mount it.
Retainer Bar $100
Mounting Hardware $10
|
 |
| 19 x 6 RETAINER BARS |
|
|
 |
| 19 X 6 SLIDE IN RETAINER BAR |
|
| 19" Wide X 6" Tall Lifestyle Slide In Bar
This style of retainer bar is designed to be mounted on the top surface the bed. It is approximately. 19" wide and 6" tall. It slides into plastic grommets that look like giant golf tees with a hole in the middle. Sets of 2 grommets are available to purchase separately.
Retainer Bar $80
Grommets $25 (set of 2)
|
 |

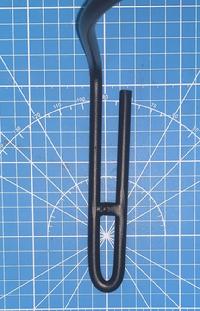

| 19 x 6 SLIDE IN RETAINER BAR MOUNTING POINT |
|
|
 |
| 19 x 6 SLIDE IN RETAINER BAR GROMMET |
|
|
29" Wide X 6" Tall Ergo
16" Wide X 6" Tall Ergo
This style of retainer bar is designed to be mounted from the top of the bed. They are available in the two sizes above. It has the snap in mounting points. The mounting brackets must be purchased separately. To install, spread the bar apart and slide into the mounting holes from the outside. This is the easiest bar to retrofit onto a bed with a wooden deck.
Retainer Bar $ 47
Mounting Hardware $13 set
|
 |
| 29 x 6 ERGO RETAINER BAR |
|
|
 |
| ERGO RETAINER BAR MOUNTING BRACKET |
|
|
 |
| FLUSH MOUNT MATTRESS RETAINER BAR |
|
| 19" WIDE FLUSH MOUNT MATTRESS RETAINER BAR
The biggest complaint about retainer bars is that they are in the way when you are putting the mattress pad and fitted bottom sheet on the bed. They have tried all types of retainer bar configurations, even removing the bar and putting Velcro strips across the deck to snag the mattress. The flush fit retainer bar was another attempt at resolving this problem. It just created another problem, you had to have a mattress with a specially made pocket on the bottom for the bar to slide into. It would be hard to find a mattress with this feature any longer. Like the "Slide In" retainer bar above, the bar is 19" wide and uses the same plastic grommet it slides into. If you replace your mattress and it does not have the flush mount pocket, you can change to the "Slide In" bar above. The clips for the ends of the bar can be found at any hardware store. I have just one of these left.
Retainer Bar $80
Grommets $25
|
 |
| FLUSH MOUNT MATTRESS RETAINER BAR DOGLEG LENGTH |
|
|
 |
| FLUSH MOUNT MATTRESS RETAINER BAR INSTALLED |
|
|
 |
| FLUSH MOUNT MATTRESS RETAINER BAR CLIPS |
|
|
16" Wide X 6" Tall Lifestyle Spread Apart
This style of retainer bar is designed to be mounted from the top of the bed. It mounts 4" in from the end of the bed. It is different from the Ergo retainer bar in that the mounting bracket is recessed into the base. That is why the end of the bar curves down. The mounting brackets must be purchased separately. I do not stock the mounting brackets but can special order them. They cost almost as much as the bar.
Retainer Bar $ 80
|
 |
| SIDE VIEW LIFESTYLE SPREAD APART RETAINER BAR |
|
|
 |
| LIFESTYLE SPREAD APART RETAINER BAR TOP VIEW |
|
|
ERGO 19.5" X 7" SLIDE IN RETAINER BAR
This bar is used on the Ergo Quest bases. It slides into two clips on the base. The clips are fasten into a metal part of the frame deck so they will not fit on a base with a wood deck. The bar has a diameter of .34 inches.
$40
|
 |
| QUEST 2.0 19" X 7" RETAINER BAR |
|
|
 |
| QUEST 2.0 19" X 7" RETAINER BAR END |
|
|
TEMPUR-PEDIC PREMIER RETAINER BAR
This is the retainer bar for any size Tempur-Pedic Premier base. It is 20" wide and almost 8" tall. The mounting loop is 2 3/4 inches long. This bar will not fit the mounting points for the Lifestyle bases. The mounting kit is purchased separately.
RETAINER BAR $60
MOUNTING KIT $15
|
 |
| TEMPUR-PEDIC PREMIER RETAINER BAR WIDTH |
|
|
 |
| TEMPUR-PEDIC PREMIER RETAINER BAR HEIGHT |
|
|
 |
| TEMPUR-PEDIC PREMIER RETAINER BAR MOUNT |
|
|
|
| 24" WIDE
10" TALL
These bars mounted to the bottom of older base that had 4" of foam on top of the wood deck. There were bolts that stuck out to fit the holes on the bar. A wing-nut then held the bar on. The part of the bar that curves under the base is 3.5" long and the holes are 2" apart. I have 2 of these bars available.
$40
|
|
-----------------------------------------------
|
|
|
29" Wide
10" Tall
This style of retainer bar was used on the Maxwell basses just before they were discontinued. It is no longer available. It is designed to be mounted under the bottom surface of the bed. It is approximately. 29" wide and 10" tall and the loop mounting point is 4" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. If you have a thick mattress that keeps lifting above your current retainer bar it can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. I currently only have one of these bars available.
$80
|
|
-----------------------------------------------
|
|
| 29" wide
10" tall
This style of retainer bar is the original bar used on the Maxwell bases. It is designed to be mounted under the bottom surface of the bed. It is approximately. 29" wide and 10" tall and the loop mounting point is 4" long and the mounting holes are located 1 1/2" and 3 1/2" in from the edge of the base. It was a flat metal and was prone to bending. It was mounted to pre-installed t-nuts in the base. If you have a thick mattress that keeps lifting above your current retainer bar it can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. I currently only have one of these bars available.
$25
|
|
------------------------------------------------
|
|
|
28" Wide
11.5" Tall
This style of retainer bar is similar to the original bar used on the Maxwell bases but taller. It is designed to be mounted under the bottom surface of the bed. It is approximately. 28" wide and 11.5" tall. The loop mounting point is 3.75" long and the mounting holes are located 1 3/4" and 3" in from the edge of the base. It was a flat metal and was prone to bending. It was mounted to pre-installed t-nuts in the base. If you have a thick mattress that keeps lifting above your current retainer bar it can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. I currently only have one of these bars available.
$25
|
|
-----------------------------------------------
|
|
|
24" wide
10" tall
This style of retainer bar is designed to be mounted under the bottom surface of the bed. It is approximately. 24" wide and 10" tall The flat mounting point is 3 1/4" long and the mounting holes are located 3/4" and 2 3/4" in from the edge of the base. If you have a thick mattress that keeps lifting above your current retainer bar it can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. I have just one of these bars.
$25
|
|
-----------------------------------------------
|
|
|
23" Wide
10" Tall
This is similar to the bar used on Maxwell bases. It is designed to be mounted under the bottom surface of the bed. It is approx. 23" wide and 10" tall and the loop mounting point is 4" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. If you have a thick mattress that keeps lifting above your current retainer bar it can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently only have two of these bars available.
$40
|
|
-----------------------------------------------
|
|
|
20" Wide
7" Tall
This bar is designed to be mounted on the top surface of the bed. It is approx. 20" wide and 7" tall and the loop mounting point is 4" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. It can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently only have one of these bars available.
$40
|
|
------------------------------------------------
|
|
|
20" Wide
7" Tall
This is the bar used on Tempur-Pedic Premier bases. It is chrome and is approximately 20" wide and 7" tall and the loop mounting point is 3" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. It can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have three of these bars available. The mounting brackets are extra.
$40 Bar
$15 Brackets
|
|
------------------------------------------------
|
|
|
19" Wide
7" Tall
This bar is a dull chrome and is approximately 19" wide and 7" tall and the loop mounting point is 4" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. It can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have four of these bars available.
$40
|
|
------------------------------------------------
|
|
|
19" Wide
7" Tall
This bar is chrome and is approximately 19" wide and 7" tall and the loop mounting point is 4" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. It is similar to the bar above but has rounded corners instead of square corners. It can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have four of these bars available.
$40
|
|
------------------------------------------------
|
|
|
19" Wide
7" Tall
This bar is flat black and is approximately 19" wide and 7" tall and the loop mounting point is 2.5" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. It can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have two of these bars available.
$40
|
|
-----------------------------------------------
|
|
|
23 " Wide
9" Tall
This style of retainer bar is designed to be mounted on the top or bottom surface of the bed. It is approximately 23" wide and 9" tall. The mounting portion of the bar is 5" long and the bolt holes are 1.5" and 3.25" in from the edge. It needs to be bolted to the base. I have four of these bars available.
$40
|
--------------------------------------------------
|
|
| 30.5 " Wide
7" Tall
This style of retainer bar is designed to be mounted on the top surface the bed. It is approximately 30.5" wide and 7" tall. It slides into plastic grommets that look like giant golf tees with a hole in the middle. These grommets should be approximately 5" in from the edge of the bed. This bar has a diameter of .39". I have just one of these bars available.
$40
|
|
---------------------------------------------------
|
|
|
28 " Wide
6.5" Tall
This style of retainer bar is designed to be mounted on the top surface the bed and is used on many South Bay brand beds. It is approximately 28" wide and 6.5" tall. It slides into plastic grommets that look like giant golf tees with a hole in the middle. These grommets should be approximately 2" in from the edge of the bed. This bar has a diameter of .39". I have just one of these bars in stock but can order more.
$40
|
|
-----------------------------------------------
|
|
|
19" Wide
6 1/4" Tall
This bar is designed to be mounted on the top surface of the bed. It is approx. 19" wide and 6 1/4" tall and the loop mounting point is 6" long. It has the open loop mounting point. It mounted to pre-installed t-nuts in the base. It can be retrofitted to your base, as long as it has a wooden deck. You will have to drill holes and install either t-nuts or use a nut and bolt to mount it. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have two of these bars available.
$40
|
|
-----------------------------------------------
|
|
|
23" Wide
5.5" Tall
This bar is designed to be mounted on the top surface of the bed. It spreads apart and them snaps into a bracket screwed onto the top of the deck. It is approx. 23" wide and 5.5" tall. The bracket is mounted 4 inches in from the edge of the base. The bar is .39" in diameter. It can be retrofitted to your base, as long as it has a wooden deck. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have two of these bars available.
$40
|
|
-----------------------------------------------
|
|
|
23" Wide
6" Tall
This bar is designed to be mounted on the top surface of the bed. It spreads apart and them snaps into a bracket screwed onto the top of the deck. It is approx. 23" wide and 6" tall. The bracket is mounted 4 inches in from the edge of the base. The bar is .39" in diameter. It is different from the above bar in that it has curved corners instead of square corners. It can be retrofitted to your base, as long as it has a wooden deck. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have one of these bars available.
$40
|
|
-----------------------------------------------
|
|
|
20" Wide
6" Tall
This bar is designed to be mounted on the top surface of the bed. It spreads apart and them snaps into a bracket screwed onto the top of the deck. It is approx. 20" wide and 6". The bracket is mounted 6 inches in from the edge of the base. The bar is .39" in diameter. It has curved corners. It can be retrofitted to your base, as long as it has a wooden deck. It can also be used on the side of the bed, near the top, to keep the mattress from sliding sideways. I currently have two of these bars available.
$40
|
|
-----------------------------------------------
|
|
|
19" Wide
5" Tall
This style of retainer bar is designed to be mounted on the top surface the bed. It is approximately 19" wide and 5" tall. It slides into plastic grommets that look like giant golf tees with a hole in the middle. These grommets should be approximately 3" in from the edge of the bed. This bar has a diameter of .39". I have two of these bars available.
$40
|
RETAINER BARS FOR THE SIDE OF YOUR BED
Side retainer bars are used to stop the mattress from sliding off the side of the bed. I have two sizes. They are 10 inches wide and either 6" or 10" tall. They have to be mounted on a single piece of wood, they cannot be connected to two differnt pieces of wood. In addition to the bars indicated below, you can use any of the foot retainer bars above if you mount them on the single piece of wood that lifts the head of the mattress. You can put one or two on each side as needed. One at the head and one at the foot. It is not recommended that they be mounted in the middle of the side of the bed as that is where you sit getting in and out of bed and you my sit down on the bar, damaging it.
|
10" X 4"
This model is 10" wide and 4" tall. They bolt onto the top of the newer model base platforms. They are not tall enough to work on older bases that have the 4 or 5 inch foam layer on top of the wood base platform (K-style bases). They are powder coated in white enamel.
$45 each
|
 |
| 10 x 4 SIDE RETAINER BAR |
|
|
 |
| 10 x 4 SIDE RETAINER BAR |
|
|
SHARK BITES
Shark Bites is the name for the small plastic disc used by the Select Comfort/Numbers mattress company to hold their mattresses in place. Air mattresses tend to be too light to stay in place well on the bases and have a tendacy to slide sideways when you get in and out of the bed. The shark bites wold go inside the zippered mattress cover. A bolt would go through them, through the fabric and into a T-nut in the base. The original version was just a large plastic disc that was inside the mattress cover. it did not clamp the cover tightly and as a result, the cover fabric would tear over time. The newer part is a two piece part - one on the inside of the fabric and one on the outside. It grips the fabric tightly over a larger area and slows down the tearing of the fabric. They are sold in sets of two.
$25 per set
|
 |

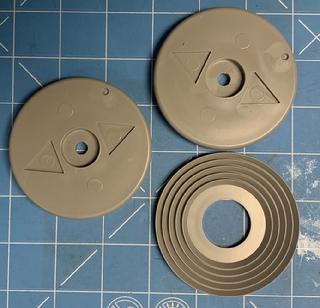

| SHARK BITES |
|
|
|
