MASSAGE MOTORS
There are two main types of massage motors:
1. 110 volt a/c motors
2. low voltage d/c motors
|
 |
| 110 VOLT MASSAGE MOTOR |
|
|
110 VOLT A/C MOTORS
The 110 volt a/c motors are found mainly on the older beds. They have a thick round cord coming from them with a small square 4 pin connector on the end designed to fit the Lifestyle bases. You may have to cut the end off of your old massage motor and splice it onto the new one. These motors can last up to 10 years with daily use. There are two types of 110 volt massage motors. Click here for more information.
$100.00 EACH
|
 |
| 110 VOLT MASSAGE MOTOR PLUG |
|
|
24 VOLT D/C MOTORS
The 24 volt D/C motors are used on beds with oki motors. They have a thin round cord coming from them with a flat 2 pin micro connector on the end. The top right picture is the current version of the motor. The bottom right picture is the older version of the motor. They both have the same plug on the end, the black 2 pin micro plug pictured in the bottom left picture. If your old massage motors do not have this plug, then this massage motor will not fit on your bed. There are no jumpers.
CAUTION: Be sure to fully depress the clip on the massage motor plug when you unplug it from the Oki motor. If you do not fully depress the clip you will pull the socket out of the side of the Oki motor. In the picture below right, the plug on the left has the socket attached.
$ 100.00 EACH
|
 |
| CURRENT 24 VOLT MASSAGE MOTOR |
|
|
 |
| ORIGINAL 24 VOLT LIFESTYLE MASSAGE MOTOR |
|
|
 |
| LLIFESTYLE MASSAGE MOTOR PLUG |
|
|
 |
| THE PLUG ON THE LEFT HAS THE RECEPTACLE FROM THE CIRCUIT BOARD STILL ON IT. |
|
|
 |
| OKIN MASSAGE MOTOR |
|
| OKIN MASSAGE MOTOR
These are 24 volt motors and have a flat 2 prong plug. They are used in the CU258/358 control boxes. The RPM rating may vary depending on what they have in stock. The rubber mounting gaskets are listed below. Twin xl bases usually had 1 or two motors. Queen and king bases can have up to 4 motors and require the massage motor splitter listed below.
$90
0044
|
 |
| OKIN MASSAGE MOTOR LABEL |
|
|
_________________________________
|
|
|
OKIN MASSAGE MOTOR
This massage motor is for use with assorted Okin control units. Please note, it has a differrent plug than those used in the CU358-2 control units.
$60
2310105
|
|
RICHMAT MASSAGE MOTORS
Richmat massage motors are 24 volt. They come in three plug configurations. They are a straight round plug, a 90 degree round plug, and a straight oval plug. They are not interchangeable.
I have a limited supply of the 90 degree round plug and the straight oval plug. They are still at the old price. I am still able to order the motor with the straight round plug.
Confirm what type of plug you have before ordering.
90 degree round plug motor $60
Oval straight plug motor $60
Straight round plug motor $100
|
 |
| RICHMAT MASSAGE MOTOR |
|
|
 |
| RICHMAT 90 DEGREE ROUND VIBE PLUG |
|
|
 |
| RICHMAT STRAIGHT ROUND VIBE PLUG |
|
|
----------------------------------
|
 |
| RICHMAT STRAIGHT OVAL VIBE MOTOR PLUG |
|
|
 |
| RICHMAT STRAIGHT OVAL VIBE MOTOR PLUG |
|
|
 |
| RICHMAT STRAIGHT OVAL VIBE MOTOR PLUG |
|
|
 |
| MOTOSLEEP MASSAGE MOTOR |
|
| MOTOSLEEP MASSAGE MOTOR
Model MS02K
This is the 24 volt DC massage motor used on many Motosleep bases. The plugs are the same at the head and foot but different color so you know where to plug them in.
$60
|
 |
| MOTOSLEEP MASSAGE MOTOR PLUG |
|
|
TEMPUR-PEDIC/REVERIE MASSAGE MOTORS
Tempur-Pedic originally used Leggett and Platt bases but then switched to Reverie bases. (They now use Ergo Motion). These are the massage motors used in the Reverie bases. They would often start to make noise over time and needed replacement. They had a sticker on them to identify head and foot motors and had a matching plug of the same color. As far as I have ever been able to tell, they are identical motors. I believe the plug color difference was to aid in plugging them into the correct plug on the control box. They are no longer made but I have a few in stock. If you call Reverie, they will want to sell you a $600 upgrade kit because the motors they currently have available have a different plug.
$60
|
MASSAGE MOTOR ACCESSORIES
|
 |
| OKIN MASSAGE MOTOR SPLITTER CABLE |
|
|
OKIN MASSAGE MOTOR SPLITTER
Some queen and king beds had 4 massage motors. All control boxes have a max of 2 massage motor plugs. This splitter allows 2 massage motors to be plugged into one port. One end of the splitter is a plug and the other end has 2 recepticles.
$24
|
 |
| OKIN MASSAGE MOTOR SPLITTER CABLE PLUGS |
|
|
 |
| MOTOSLEEP MASSAGE MOTOR SPLITTER |
|
| MOTOSLEEP MASSAGE MOTOR SPLITTER
Some queen and king beds had 4 massage motors. All control boxes have a max of 2 massage motor plugs. This splitter allows 2 massage motors to be plugged into one port. One end of the splitter is a plug and the other end has 2 recepticles.
$35
|
 |
| MOTOSLEEP MASSAGE MOTOR SPLITTER PLUGS |
|
|
RICHMAT MASSAGE MOTOR SPLITTER
Some Richmat control boxes only had one port for both the head and foot massage motors. This is the splitter for use on those boxes. One end of the splitter is a plug with 5 pins and the other end has 2 receptacles - a flat blade and a tiny round pin.
NOTE: It is not for hooking two massage motors from the same end of a bed together.
$35
|
MASSAGE MOUNTING PADS
These rubber bushings were used under the 110 volt massage motors on older Maxwell bases. They prevented the massage motors from rattling against the wood platform they are mounted to. They are sold in sets of four.
$20
|
|
|
| MASSAGE MOTOR MOUNTING KIT
Some massage motors are suspended in the deck and held in place by a rubber support pad and bracket. This kit consist of the plastic frame, rubber support pad, foam cushioning, anti vibration strips and replacement screws. This kit is for one motor.
$80
9432
|
OKIN MASSAGE MOTOR MOUNTING KIT
Some massage motors are suspended in the deck and held in place by a rubber support pad and bracket. This kit consist of the plastic frame, vibe motor clamp, rubber suspension pad, and fibre cushioning. This kit is for one motor.
$60
|
 |
| OKIN MASSAGE MOTOR MOUNTING KIT |
|
|
 |
| MOTOSLEEP MASSAGE MOTOR MOUNTING KIT |
|
|
MOTOSLEEP MASSAGE MOTOR MOUNTING KIT
Some massage motors are suspended in the deck and held in place by a rubber support pad and bracket. This kit consist of the plastic frame, rubber suspension pad, and foam cushioning. This kit is for one motor.
$40
|

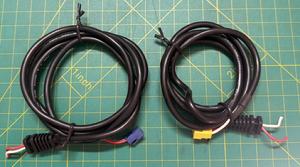

OKIN MASSAGE MOTOR CORD
These cords are soldered to the motor inside the housing. You could desolder your old one and solder this one back or just cut and splice this to your old cord outside the housing.
$25
|
 |
| OKIN MASSAGE MOTOR CORD |
|
|
|
