OKIN REFINED LIFT MOTORS
Okin motors are used on many different brands of bases. There are many different models of Okin motors. Like the Richmat motors, they often have the same model number but a different part number, depending on their location on the base. I will need the base manufacturers name and the serial number from your bed to determine the correct motor for you. You can often find the serial number on the cross bar under the foot of the bed or it may be on the back side of the battery door of the hand control.
Below are several example of Okin lift motors. This short one is usually for the foot of the bed. The head motor has the longer torque tube. This is not a steadfast rule however. The measurements given are from the center of the mounting pin hole on one end to the center of the mounting pin hole on the other end. Also, please note that the extended measurement is for when the motor is electronically extended. If you just pull the tube out by hand until it stops, it will exceed the measurements given.
The most common problem with older versions of these motors is that they just click when you try to activate them but do not move. You can determine if this is caused by the motor or the junction box by plugging the motor into the socket for the other motor on the bed. If it does the same thing then the motor is bad. If it works in the other plug then the problem may be in the control box for the bed. I have not had this problem with the newer versions of these motors.
|
ERGO 500/300 SERIES LIFT MOTORS
|
|
|
ERGO 500/300 SERIES HEAD LIFT MOTOR
Both the 500 series and the 300 series Ergo bases use the same head lift motors. They are longer than the foot motors for either of the series. They measure 20.5" retracted and 29.5" extended.
009 h
|
|
|
---------------------------------------------
|
ERGO 500 SERIES FOOT LIFT MOTORS
This are the motor for the 500 series bases. The serial number on the base will start with SFD500**********. They have a two prong plug. It is 10.5 inches long overall when retracted and 12.5 inches long when extended. This is different than the foot motor for the 300 series bases.
009 h
012 f
|
 |

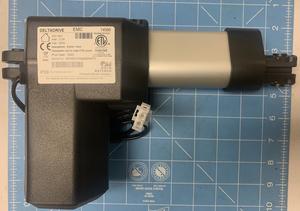

| ERGO 500 SERIES FOOT LIFT MOTOR |
|
|
 |

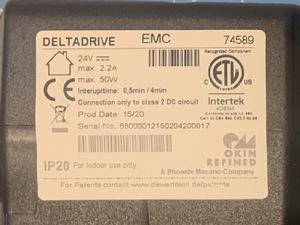

| ERGO 500 SERIES FOOT LIFT MOTOR LABEL |
|
|
----------------------------------------------
|
 |
| ERGO 300 SERIES FOOT LIFT MOTOR |
|
|
ERGO 300 SERIES FOOT LIFT MOTOR
This are the foot motor for the 300 series bases. The serial number on the base will start with SFD300**********. They have a two prong plug. It is 10.5 inches long overall when retracted and 13.5 inches long when extended. This is different than the foot motor for the 500 series bases.
009 h
010 f
|
 |

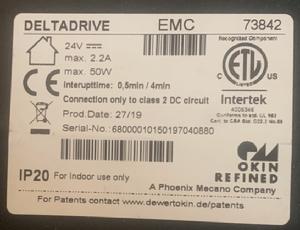

| ERGO 300 SERIES FOOT LIFT MOTOR LABEL |
|
|
OKIN REFINED JLDQ10
The head and foot versions of this motor have the same model number but a different part number.
$225
|
PART NUMBER JLDQ.10.368.198
75084
This motor is 14.5" long when retracted and 22" long when extended. I have found two different labels on them but they have the same dimensions and plug.
|
 |

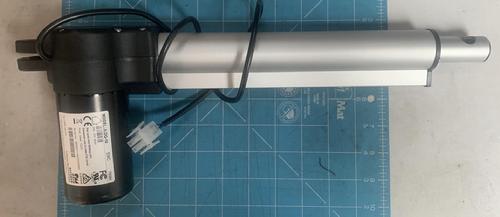

| OKIN JLDQ-10 HEAD LIFT MOTOR |
|
|
 |
| ERGO JLDQ.10 HEAD MOTOR LABEL |
|
|
 |
| ERGO JLDQ.10 HEAD MOTOR LABEL |
|
|
 |
| ERGO JLDQ.10 HEAD MOTOR PLUG, SAME ON BOTH HEAD AND FOOT |
|
|
---------------------------------------------
|
JLDQ-10 FOOT LIFT MOTOR
PART NUMBER JLDQ.10.252.59F01
This motor is 10" long when retracted and 12" long when extended. It looks like the above motor but is shorter.
|
|
|
 |

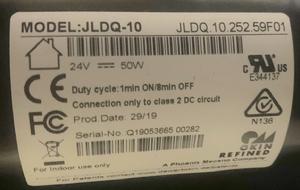

| ERGO JLDQ.10 FOOT MOTOR LABEL |
|
|
OKIN REFINED JLDQ14
The head and foot versions of this motor have the same model number but a different part number.
|
JLDQ-14 HEAD LIFT MOTOR
PART NUMBERS
JLDQ.14.B.301.153
JLDQ.14.B.301.153F10
This motor is 12" long when retracted and 18" long when extended.
8002506
|
 |

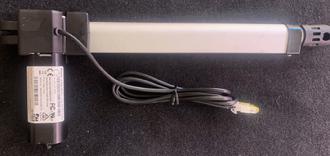

| JLDQ-14 HEAD LIFT MOTOR |
|
|
 |
| JLDQ-14 HEAD LIFT MOTOR LABEL |
|
|
 |
| ERGO JLDQ-14 MOTOR PLUG, SAME ON BOTH HEAD AND FOOT |
|
|
------------------------------------------------
|

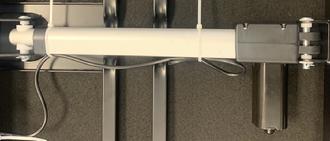

JLDQ-14 FOOT LIFT MOTOR
PART NUMBERs:
JLDQ.14.B.375.115
This motor is 15" long when retracted and 19" long when extended. It has the same plug as the head motor. I have seen it with various sub-part numbers.
8002505
|
 |
| VERSION 1 |
|
|
 |
| VERSION 1 LABEL |
|
|
 |
| VERSION 2 |
|
|
 |
| VERSION 2 LABEL |
|
|
-----------------------------------------------
|

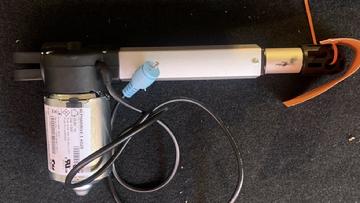

OKIN ALPHADRIVE 5 ADZ5
90038
This is a 24-29 volt foot lift motor. It is 11" long whan retracted and 14" long when extended. It has a round 2 pin plug.
$225
B9528
|
 |
| OKIN ALPHADRIVE 5 ASZ5 90038 |
|
|
 |
| OKIN ALPHADRIVE 5 ASZ5 90038 LABEL |
|
|
 |
| OKIN ALPHADRIVE 5 ASZ5 90038 PLUG |
|
|
-----------------------------------------------
|
USED DELTADRIVE LIFT MOTORS
I have the two used models of Deltadrive motors below. I bought them from a business going out of business. I do not have the models of beds that they came from, you have to match the part number on your motor to them. I have tested them and they function as new. Like all used parts, they are guaranteed to work but are sold "AS IS" without a warranty. They both have the same flat two prong plug as the above Okin motors.
|
 |

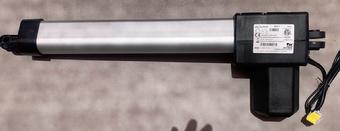

| OKIN DELTA 73851 MOTOR |
|
|
MODEL 73851
20.25 INCHES LONG RETRACTED
29.5 INCHES LONG EXTENDED
Both of these motors have the standard Okin plug.
|
 |
| OKIN DELTA 73851 MOTOR LABEL |
|
|
 |
| OKIN DELTA 73855 MOTOR LABEL |
|
|
MODEL 73855
20.25 INCHES LONG RETRACTED
31.5 INCHES LONG EXTENDED
|
 |
| OKIN DELTA 73855 MOTOR |
|
|
 |
| OKIN MOTOR EXTENSION CABLE |
|
|
OKIN LIFT/MASSAGE MOTOR EXTENSION CORD
THIS CORD ALLOWS YOU TO EXTEND THE LENGTH OF YOUR OKIN LIFT OR MASSAGE MOTOR CORD. IT HAS A PLUG AT ONE END AND A RECEPTACLE AT THE OTHER. IT IS ACTUALLY ABOUT 16" LONG. IT CAN ALSO BE CUT AND SPLICED INTO A CORD THAT HAS BEEN DAMAGED.
$36
8000234
|
 |

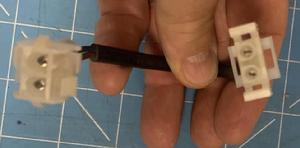

| OKIN MOTOR EXTENSION CABLE PLUGS |
|
|
--------------------------------------------------
|
OKIN LIFT/MASSAGE MOTOR REPAIR CORD
THIS CORD IS USED WHEN A PET HS CHEWED ON THE ORIGINAL LIFT OR MASSAGE MOTOR CORD AND THERE IS NOT ENOUGH OF THE OLD CORD LEFT TO SPLICE BACK TOGETHER AND STILL REACH THE CONTROL UNIT. EACH CORDIS APPROXIMATELY 4' LONG. JUST MAKE SURE YOU HAVE ENOUGH CORD STICKING OUT OF THE LIFT/MASSAGE MOTOR TO SPLICE ONTO.
$20 EACH
|
|
