This page contains the single actuator motors from Richmat.
|
RICHMAT MODEL HJA58 LIFT MOTORS
$175
|
The Richmat Model HJA58 lift motor comes in FOUR version that I am aware of. I have found two different lengths of head motors and one length of foot motor. They had the same item number but a different part number (PN). The fourth motor is for a bed with head only movement. They were used mostly on the iDeal Base In A Box.
Pictured to the right is the plug that is on three of the motor. The motor for a head only base has multiple plugs.
|
 |
| HJA58 8 PIN LIFT MOTOR PLUG |
|
|
 |
| RICHMAT HJA58 HEAD LIFT MOTOR, LONG VERSION |
|
| This is the Model HJA58 head lift motor, long version, part number 210-0010. The retracted length is 14.5 inches and the extended length is 20 inches.
|
 |
| RICHMAT HJA58 HEAD LIFT MOTOR, LONG VERSION LABEL |
|
|
|
| This is the Model HJA58 head lift motor, short version, part number 210-0029. I do not have the retracted or extended length. I do know the shaft housing is 5.5 inches, the same as the foot lift motor of this model.
|
|
|
| This is the Model HJA58 foot lift motor, part number 210-0014. I believe there is only one size. I do not have the retracted or extended length. I do know the shaft housing is 5.5 inches, the same as the head lift motor of this model.
|
|
This is the Model HJA58 head only bed lift motor, part number 210-0004. It has two plugs on the end of its cord. One is for the input cord from the power supply and the other is for the hand control. It can be a hard wired hand wand or a wireless control system.
|
RICHMAT MODEL HJA63 LIFT MOTORS
$170
I know of four different versions of the HJS63 lift motor. There are two different plug configurations and two lengths of each configuration. They have the same model number but a different part number on each. Sometimes I can get these motors and sometimes I cannot, depending on what my supplier has in stock.
|
|
| This is an example of the Richmat Motor part number and where to find it.
|
-------------------------------------------------
|
 |
| RICHMAT HJA63 4 PIN HEAD MOTOR |
|
|
FOUR PIN MOTOR PLUG
The head motor is 14" long overall when retracted and 18" long when extended. The part number is 132080A630145.
The foot motor is 12 3/4" long overall when retracted and 15 1/2" long when extended. The part number is 132080A630144.
|
 |
| RICHMAT HJA63 4 PIN FOOT MOTOR |
|
|
 |
| RICHMAT HJA63 4 PIN PLUG |
|
|
----------------------------------------------
|
EIGHT PIN MOTOR PLUG
The head motor is 13" long overall when retracted and 17" long when extended. The part number is 132080A630110.
The foot motor is 12" long overall when retracted and 14 1/2" long when extended. The part number is 132080A630111.
|
 |
| RICHMAT HJA63 8 PIN HEAD MOTOR |
|
|
 |
| RICHMAT HJA63 8 PIN FOOT MOTOR |
|
|
 |
| RICHMAT HJA63 8 PIN PLUG |
|
|
RICHMAT MODEL HJA67S HALL LIFT MOTOR
$175
This motor is 11 inches retracted and 16 inches when extended. It has an 8 pin plug.
B9655
|
 |

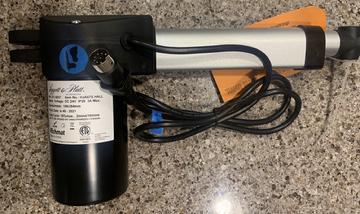

| RICHMAT HJA67S LIFT MOTOR |
|
|
 |
| RICHMAT HJA67S HALL LIFT MOTOR LABEL |
|
|
 |
| RICHMAT HJA67S HALL LIFT MOTOR 8 PIN PLUG |
|
|
|
